Magnetostrictive Level Transmitter
■ Design based on the principle of magnetostriction
■ For precise measurement of process liquid level
■ Not affected by temperature, pressure, and dielectric constant
■ Can replace traditional liquid level transmitter
Features
■ Accuracy of ±0.38mm or 0.01% FS
■ Various installation and application methods including tank top
■ High level of application parameters, wide application range
■ The core components do not touch the medium and are maintenance-free
■ Probe and float are selected according to working conditions
■ Simple installation, free of debugging and physical calibration
■ Two-wire 4~20mA/HART output
■ Ex ia IIC T4, Ex d IIC T6
Typical Application
■ High temperature&pressure liquid level/interface measurement
■ Low temperature / cryogenic liquid level measurement
■ Interface measurement
■ Replace traditional float level gauge
■ Spherical tank level measurement
■ Process level measurement
■ Integrated application
■ Tank level measurement
Models
Dual-Cavity Meter Design
Usage: measure liquid level and interface simultaneously
Accuracy: ±0.38mm or 0.01% FS
Measuring range: 0.15~9.1m
Process temperature: -196~427℃
Process pressure: vacuum ~26MPa
Protection level: IP68
Application: liquid level and interface
measurement
Accuracy: ±1mm or 0.03% FS
Maximum range: 22.3m
Process temperature: -40~121℃
Process pressure: vacuum ~5MPa
Protection level: IP68
Single cavity header design
Usage: can measure liquid level or interface separately
Accuracy: ±1mm or 0.03% FS
Measuring range: 0.15~6.1m
Process temperature: -40~260℃
Process pressure: vacuum ~15MPa
Protection level: IP67

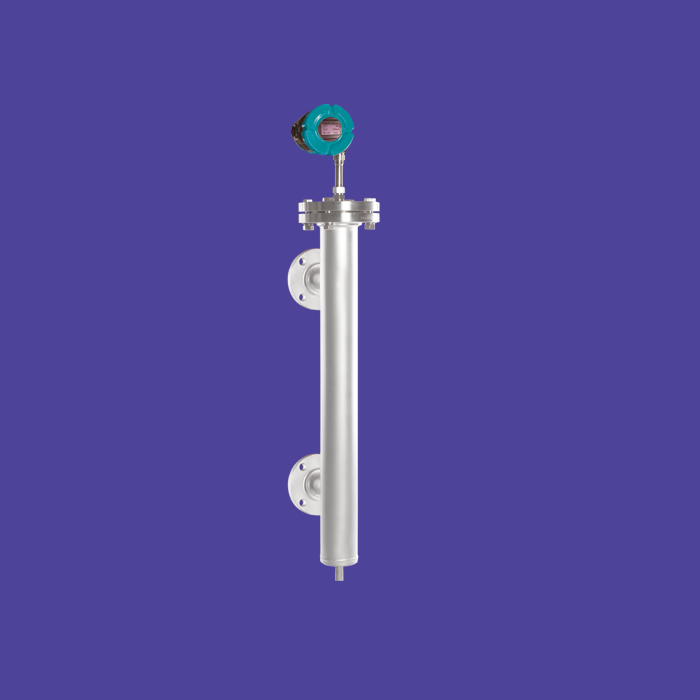

Double cavity pontoon design
Usage: Can measure liquid level and interface simultaneously
Accuracy: ±0.38mm or 0.01% FS
Measuring range: 0.15~9.1m
Process temperature: -196~427℃
Process pressure: vacuum ~26MPa
Protection level: IP68
Single cavity pontoon design
Accuracy: ±1mm or 0.03% FS
Measuring range: 0.15~6.1m
Process temperature: -40~260° C
Process pressure: vacuum ~15MPa
Protection level: IP67
Integrated application of supporting magnetic flap
Double chamber structure, unique design
Usage: Can measure liquid level and interface
simultaneously
Accuracy: ±0.38mm or 0.01% FS
Measuring range: 0.15~9.1m
Process temperature: -196~427° C
Protection level: IP68
Integrated application of supporting magnetic flap
Single chamber structure, simple and convenient
Purpose: can measure liquid level or interface
separately
Accuracy: ±1mm or 0.03% FS
Measuring range: 0.15~6.1m
Process temperature: -40~260° C
Protection level: IP67
